3 0.8 "LED digital tube highlights
Comes with 4 buttons
The label ID is displayed on the front
Wireless communication 868M, frequency hopping communication
Communication rate 200K/50K
Covering a communication radius of more than 30 meters
Multi-color LED highlight indicator
Length width: 114.5*44.5*11mm
Power supply: 24V external power supply
Custom two-way communication protocol, safe and reliable Weight: 0.0475kg (back frame 0.01kg)

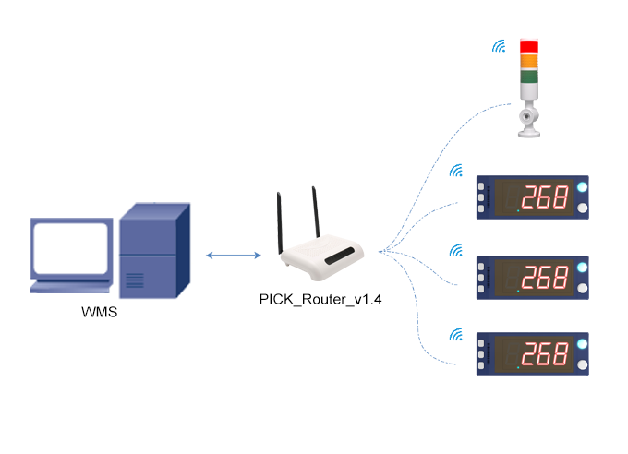

System structure V1.2
The electronic label picking system is to send instructions through the PC or scanning gun, forward through the router, and control the LED light or screen on the electronic label to guide the picker to accurately and quickly pick up the corresponding goods to the designated location.
System structure V1.4
Note: V1.4 version of the base station built-in server program, the user only sends the operation instructions to this base station to achieve data transfer, the use is simpler.

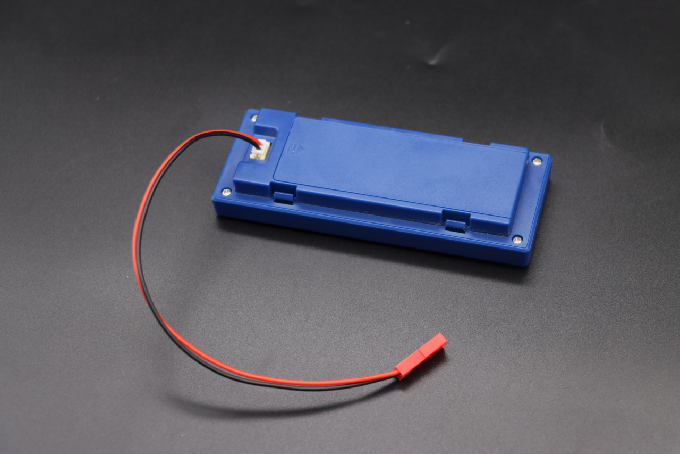

Power supply side type
DC24V External power supply (external version)
Mounted square type
Multi-account management background Web side software, enter the URL can remotely control the label Real-time view of base station and label status Label display style template custom User commodity data table import Quick brush and light operation Simple Interfacing interface (HTTP & Json) The system software supports deployment of cloud and LAN private servers.
