Warehouse Automatic Sorting 6-bit Digital Tube LED Stock Display Label_V20

Electronic label picking system is a logistics auxiliary operating system developed by advanced electronic technology and communication technology, usually used in the sorting link of warehousing or modern logistics center, with fast picking speed, high efficiency, low error rate, paperless, standardized operation characteristics. As an advanced means of operation, the electronic label assisted picking system is more efficient when used in conjunction with the warehouse management system (WMS) or other logistics management systems. Electronic label picking system is a group of electronic equipment installed on the shelf storage, through the control of computers and software, through the indicator light or digital display as an auxiliary tool, to guide the picking workers to complete the work correctly, quickly and easily.

The Features of V20

• Six digital number display
• 24V External Power Supply
• 3 colors highlight indicator
• Wireless communication
• Ultra-low consumption
• Size:156*48*14.7mm
• Interface protocol: HTTP & Json

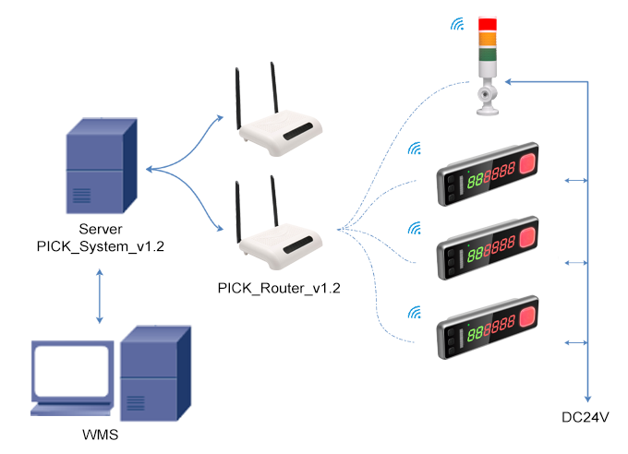

The electronic label picking system is to send instructions through the PC or scanning gun, forward through the router, and control the LED light or screen on the electronic label to guide the picker to accurately and quickly pick up the corresponding goods to the designated location.

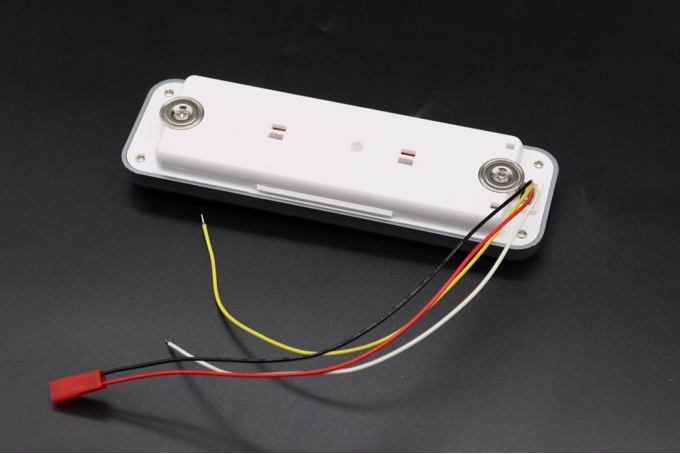

DC24V external Power Supply

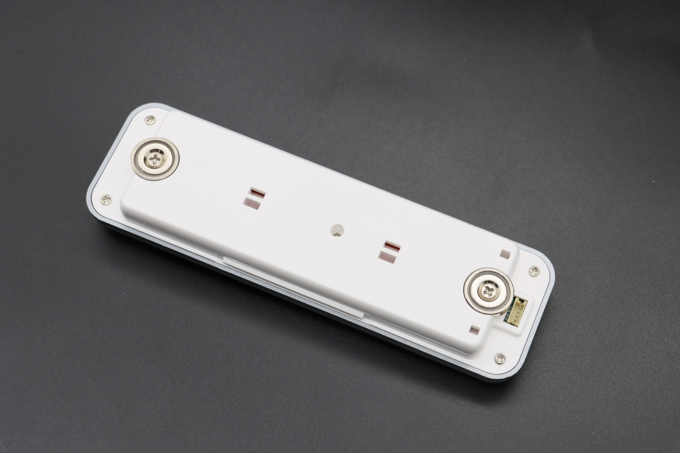

Magnetic fixed installation

Multifunctional operation interface

Through the background management interface, information is comprehensively controlled and operated.

Multi-account management background

Web side software, enter the URL can remotely control the label

Real-time view of base station and label status

Label display style template custom

User commodity data table import

Quick brush and light operation

Simple Interfacing interface (HTTP & Json)

The system software supports deployment of cloud and LAN private servers
