PTL Led Electronic Shelf Strip in the Warehouse
Working Principle
Receive and parse data sent by the router, issue corresponding instructions, and click the button to indicate picking is complete.

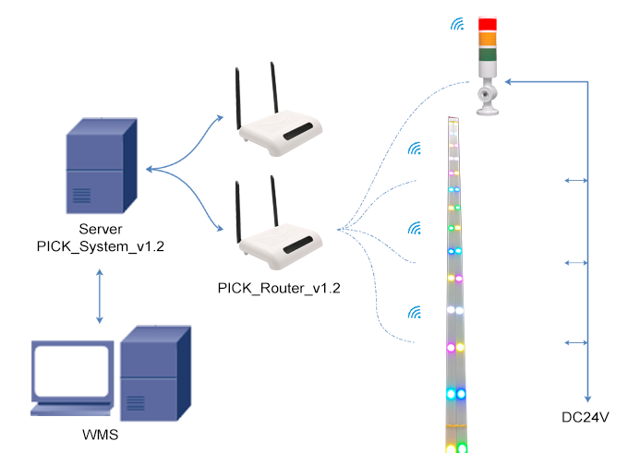

The electronic label picking system sends instructions via a PC or scanner, which are forwarded through a router to control the LED lights or screens on electronic labels. This guides pickers to accurately and quickly retrieve the corresponding goods from designated locations.
The Features of LED Digital Strip
Tag ID Code Front Display
Wireless Communication 868MHz, Frequency Hopping Communication
Rate 200K/50K
Communication Range Over 30 Meters
Multi-color LED High-brightness Indicator, Natural Color Rendering
Dimensions (LxWxH): 1250*19.6*15.6mm
Power Supply: 24V External Power Supply
Custom Bidirectional Communication Protocol, Secure and Reliable
Interface Protocol: HTTP & JSON
The strip needs to be used with the controller.
Client Case
